- MG8650seriesRF admittance Transmitter
-

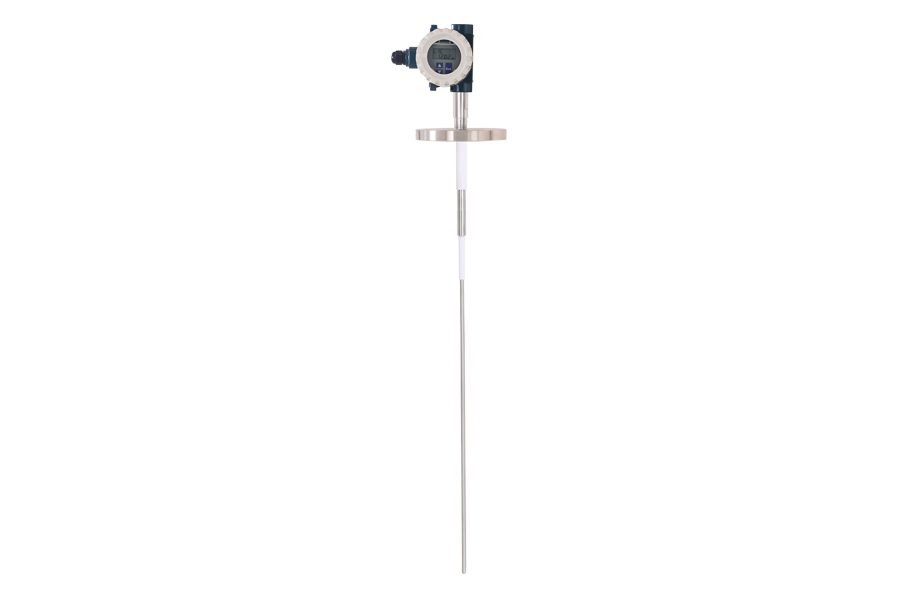

● MG8651 Intelligent RF admittance Transmitter (Insulating probe for conductive medium)
● MG8652 Intelligent RF admittance Transmitter (Naked probe for insulating medium)
- Product line
- Principle
- Technical Data
- Properties
- Application
● MG8651 Intelligent RF admittance Transmitter (Insulating probe for conductive medium)
● MG8652 Intelligent RF admittance Transmitter (Naked probe for insulating medium)
Measurement parameters: Liquid level, interface, material level
Electrical interface: 1/2"NPT/M20×1.5
input voltage: 13.5～30VDC;With polarity reverse connection protection
Process pressure: 0～250bar(0～25MPa)
Process temperature: -58～788℉(-50～420℃)
output signal: Second tier system 4～20mADC、HART
measurement accuracy: ±0.1％
Process display: 4～20mA、Percentage、Engineering unit
Length of probe: Rigidity 20～236"(500～6000mm)
Flexibility 20～1968"(500～50000mm)
Coaxial Flexibility 20～787"(500～20000mm)
Side type Flexibility 20～236"(500～6000mm)
material: 316LSST、304SST、Ti、Ta、PTFE etc
Process connection: Flange connection or threaded connection
Ex-mark: safe in nature Ex iaⅡC T1～T6
explosion-proof Ex dⅡC T1～T5 Gb
protection degree: IP67
● Suitable for high viscosity medium Paste、Sticky dirt and dirt, asphalt, grease etc Liquid level measure;
● Easy calibration, calibration of cadre;
● Connection error back protection, anti radio frequency interference.
Measurement of thermal heavy oil, asphalt, sticky dirty medium and fat high viscous medium.
