Product Details
MG8330seriesBuoyController

● MG8331 Buoy Liquid level Controller

● MG8332 Floating ball  Liquid level Controller

● MG8333Hammer type Liquid level Controller

  • Product line
  • Principle
  • Technical Data
  • Properties
  • Application

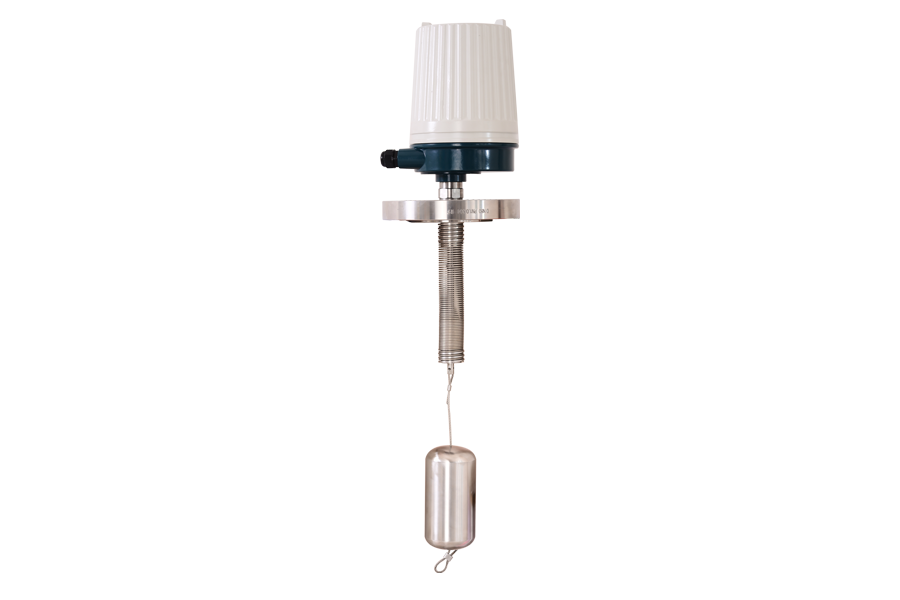

● MG8331 Buoy Liquid level Controller

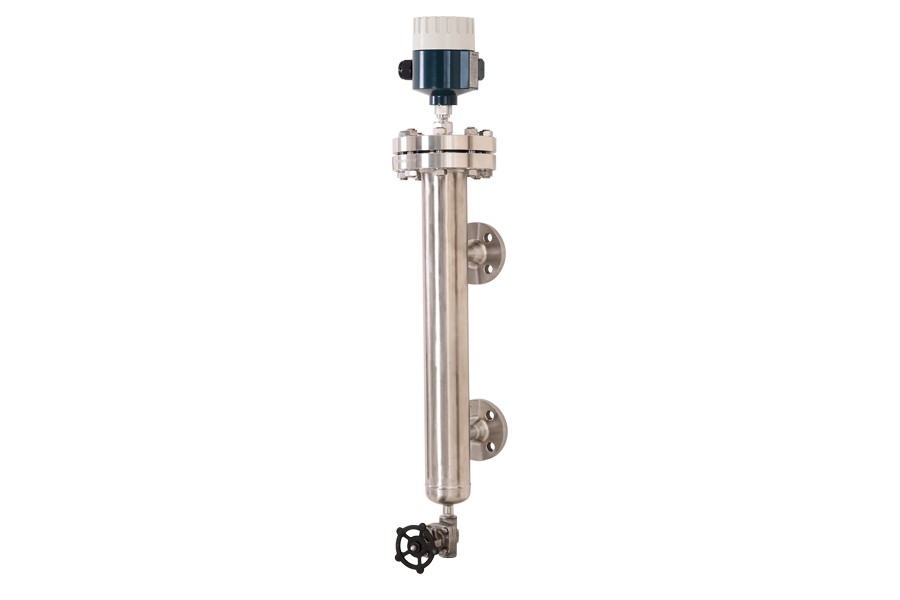

● MG8332 Floating ball  Liquid level Controller

● MG8333Hammer type Liquid level Controller

With the change of the level of the float, the micro switch is switched from the open to the normally closed by the action of the lever force.

● Suitable for 400 ~ 700Kg/m3 low density liquid level control;

● high temperature450℃,high pressure 15MPa

● Control range ≤6000mm,Field flexible adjustable;

● Passive contact output, convenient and reliable;

● contact rating 5A/120VAC /250VAC  5A/24VDC

liquid、Mixed medium的Liquid level control.
